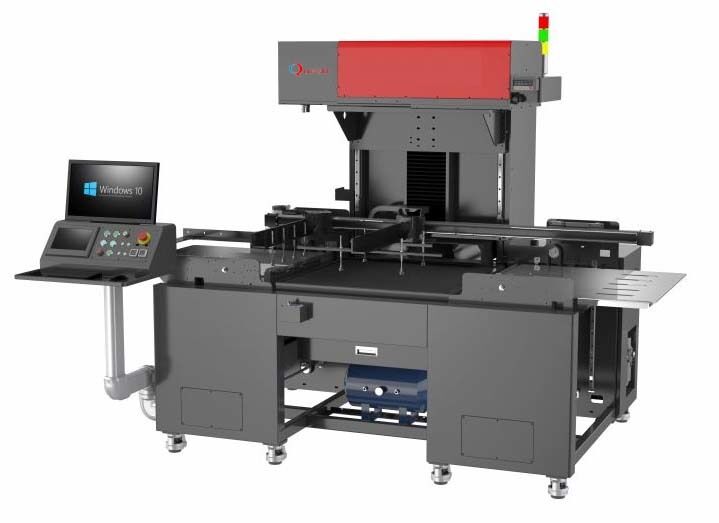

3D Dynamic RF Laser Cutting and Marking System with Auto Feeder

1. Brief Introduction:

The equipment consists of super laser marking machine and automatic sheet loading and unloading machine combination, can be a variety of non-metallic sheet material to achieve automatic up and down and automatic laser marking function; can be equipped with CCD visual positioning system, to achieveaccurate positioning processing, marking speed faster, higher precision engraving. Automatic sheet loading and unloading machine has simple structure.easy operation and stable performance.Fully enclosed structure, safer laser processing, in line with export safety processing needs.

.

2.Specifications

• Laser Type: CO2

• Laser wavelength: 10.64μm
• Max marking area: 400x400mm, 600 x 600mm or 800 x 800mm
• Marking speed: ≤7000mm/s
• Repetition precision: 0.01mm
• Laser frequency: 20kHz~200kHz
• Graphic Format Supported: AI, BMP, DWG, DXP, PLT, JPG
• Working Accuracy: 0.01mm
• Model Number: QA-3D300/350/600
• After-sales Service Provided: Engineers available to service machinery overseas
• Laser power: 300W/350W/600w
• Power consumption: ≤9kw
• Power supply: AC220V/25A/50Hz
• Cooling way: circulation of water cooling
•

3. Packaging & Delivery

4. Equipment Performance

• 1, Comparing with traditional post-dynamic focusing marking machine, it's no necessary to replace the different flat-field lenses to get different marking area. Thinner laser spot as well.
• 2, No need adjustment or maintenance, working at once after installation viable.
• 3, Original imported RF laser tube with high laser power, excellent laser spot, stable laser generation and lifetime of more than 20,000h.
• 4, High precision and speed performance with cutting & engraving working, 20% higher efficiency than similar models.
• 5, Professional industrial thermostatic circulation of water cooling system
• ensures more stable running and lower consumption.
• 6, Strict multiply protection control system can be sure the stable continuous working of 24h of laser marking system.
• 7, Application under Windows interface, AutoCAD, CorelDraw, Photoshop compatible, PLT, DXF, BMP supportive etc .
• 8, Especially applies RBI marking with light guild plate or acrylic, and cutting&engraving with paper, formboard, leathers and footwears.

•

  5. Application Field

  数 Suitable for greeting cards, wedding invitations, sugar boxes, invitations.cake surrounds, seat cards cup cards, painting templates, cultural and creative crafts and other types of industries of all kinds of materials

• 6. Samples

• Paper and leather

•

•
